Drop Forged Rivetless Chain (X678)
*The actual life is decided by several factors such as operation level, raw material quality, formula composition etc.
Description
Key tips:
Item | Specification |
Model | Various |
Size | Customized |
Material | Alloy Steel |
Application | Various |
Trademark | SINOVA |
HS Code | 7318190000 |
Condition | Brand new |
Service Life | -* |
Free Sample | Not available |
Payment Term | TT / LC |
Incoterms | EXW / FOB / CFR / CIF |
Courier | Sea / Air / Express |
Transport Package | Wood Pallet / Plywood Case |
Origin | Jiangsu, China |
*The actual life is decided by several factors such as operation level, raw material quality, formula composition etc.
Why Sinova:
Aspects | SINOVA | Other Suppliers |
Global Team Experience | More than 12 years | Few |
Lead Time | 14 days | Min. 30 days |
Consignment Trace-ability | Yes | No |
Online Service Availability | 24*365 | 8*260 |
With Sinova drop forged chain, you could ensure: |
1. The feed mill’s stable running; |
2. Up to 30% of cost could be saved; |
3. As long as 15-30 days of waiting could be avoided; |
4. Fast response to your concern is always available; |
5. Getting the whole procedure of delivery under your control. |

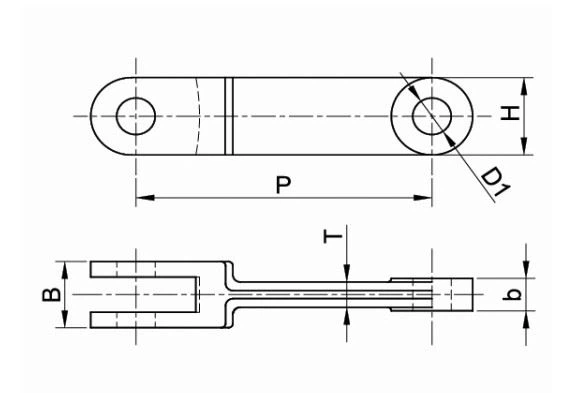

Drop Forged Chain
Min. Tensile Strength(KN) | Model | Pitch(mm) | Flange Thickness mm | Web Thickness mm | Pin Shaft Dia. mm | Chain Plate Height mm | Chain Plate Thickness mm |
P | B | b | D1 | H | T | ||
140 | P100 | 100 | 33 | 15.5 | 14 | 30 | 13 |
150 | P125 | 125 | 34 | 16 | 17 | 33 | 10 |
270 | P142 | 142 | 43 | 19 | 25 | 50 | 12.2 |
340 | P142H | 142 | 62 | 29 | 25 | 50 | 15 |
260 | P160 | 160 | 48 | 23 | 20 | 39 | 13 |
270 | P200 | 200 | 42 | 20 | 20 | 45 | 12 |
390 | P200H | 200 | 50 | 23 | 32 | 64 | 15 |
Customized designs as per clients’ requirement are as followed:
 |  |  |
| S Type | F Type | P Type |
 |  |  |
| U Type | C Type | O Type |
FAQ:
1. Q:What is drop forged chain?
A:Drop Forged/En-Masse chains are versatile, simple chains offering high strength & wear resistance. Capable of conveying a multitude of products on inclines up to vertical and at temperatures of up to 1000 °C (depending on the chain alloy selected). The conveyor design can be totally enclosed and very compact.
2. Q:What is the structure of drop forged chain conveyor?
A:Usually it consists of head section, tail section, feeding section,drop forged chains, discharging outlet(depending on the processing demand), conveying section and transmission device.
