Polyester Conveyor Belt
*See the attached table for detail information.
**The actual life is decided by several factors such as operation level, raw material quality, formula composition etc.
Description
Key Tips:
Item | Specification |
Model | Various |
Size | Customized |
Material | Various* |
Trademark | SINOVA |
HS Code | 8436990000 |
Condition | Brand new |
Service Life | -** |
Free Sample | 1-2 pieces available*** |
Payment Term | TT / LC |
Incoterms | EXW / FOB / CFR / CIF |
Courier | Sea / Air / Express |
Transport Package | Wood Pallet / Plywood Case |
Origin | Jiangsu, China |
*See the attached table for detail information.
**The actual life is decided by several factors such as operation level, raw material quality, formula composition etc.
***Free samples are available(size less than 10mm*10mm), however Sinova will not pay the freight for it.
Why Sinova:
Aspects | SINOVA | Other Suppliers |
Global Team Experience | More than 12 years | Few |
Lead Time | 14 days | Min. 30 days |
Consignment Trace-ability | Yes | No |
Online Service Availability | 24*365 | 8*260 |
With Sinova polyester conveyor belt, you could ensure: |
1. The feed mill’s stable running; |
2. Up to 30% of cost could be saved; |
3. As long as 15-30 days of waiting could be avoided; |
4. Fast response to your concern is always available; |
5. Getting the whole procedure of delivery under your control. |
Polyester Conveyor Belt
Features:

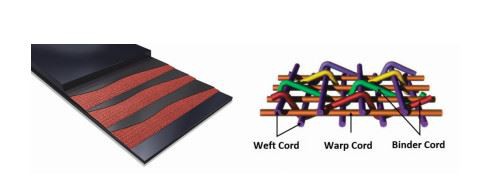

1. Canvas woven carcass consists of polyester warp and poly-amide weft. The belt contains low elongation (in warp) and good trough-ability (in weft) features.
2. Good water-resistance. No strength loss in wet condition. The belt will not get moldy.
3. High strength, fatigue resistant, impact resistant, anti-tearing, long service life.
Application:
1. Widely used in long-distance conveying with heavy-duty materials.
2. Impact resistant and anti-tearing belt is normally used to handle high density materials in conveyor loading points or transfer points where the drop height are more than one meter.
Specifications
Item | Unit | Index Value | |
No. of ply |
| 2-6 | |
Carcass Material |
| EP80-EP400 | |
Tensile Strength | N/mm | 160-2400 | |
Elongation @ 10% Tensile Strength | % | ≤2 | |
Adhesion Strength | Carcass Ply to Carcass Ply | N/mm | ≥4.5 |
Cover to Carcass Ply | N/mm | ≥3.5 | |
Width | mm | 300-1800 | |
Length | m | ≤250 | |
Cover Rubber Properties
Type | Tensile Strength | Elongation At Break | Abrasion Loss |
MPa | % | mm3 | |
Normal Condition | ≥15 | ≥350 | ≤200 |
Heavy Abrasive Condition | ≥18 | ≥400 | ≤100 |
Heavy Tearing Condition | ≥24 | ≥450 | ≤120 |
Performance at Overall Thickness
Fabric Type | Ply Thickness | Nominal Tensile Strength @ Overall Thickness (N/mm) | Elongation At Break | Elongation At Rated Stress | Belt Width | Belt Length | ||||
| mm | 2ply | 3ply | 4ply | 5ply | 6ply | % | % | mm | m |
EP80 | 0.60 | 160 | 240 | 320 | 400 | 480 | ≥10 | ≤4 | 300-1500 | ≤300 |
EP100 | 0.70 | 200 | 300 | 400 | 500 | 600 | ||||
EP125 | 0.70 | 250 | 375 | 500 | 625 | 750 | ||||
EP150 | 0.80 | 300 | 450 | 600 | 750 | 900 | ||||
EP200 | 1.00 | 400 | 600 | 800 | 1000 | 1200 | ||||
EP250 | 1.20 | 500 | 750 | 1000 | 1250 | 1500 | ||||
EP300 | 1.25 | 0 | 900 | 1200 | 1500 | 1800 | ||||
EP350 | 1.30 | 0 | 0 | 1400 | 1750 | 2100 | ||||
EP400 | 1.40 | 0 | 0 | 1600 | 2000 | 2400 | ||||
FAQ:
1. Q:What is the advantage of belt conveyor?
A:Belt conveyors are the most commonly used powered conveyors because they are the most versatile and the least expensive. Products are conveyed directly on the belt so both regular and irregular shaped objects, large or small, light and heavy, can be transported successfully.
2. Q:How are conveyor belts with different materials utilized in Industry?
A:Steel conveyor belts are used when high strength class is required. For example, the highest strength class conveyor belt installed is made of steel cords. This conveyor belt has a strength class of 10,000 N/mm (57,000 lbf/in) and it operates at Chuquicamata mine, in Chile.
Polyester, nylon and cotton are popular with low strength classes.
Aramid is used in the range 630-3,500 N/mm (3,600-20,000 lbf/in). The advantages of using aramid are energy savings, enhanced lifetimes and improved productivity. As an example, a 2,250N/mm (12,800 lbf/in), 3,400-metre-long (3,700 yd) underground belt installed at Baodian Coal Mine, part of in Yanzhou Coal Mining Company, China, was reported to provide energy savings of > 15%. Whilst Shenhua Group, has installed several aramid conveyor belts, including a 4,400N/mm (25,000 lbf/in) belt with a length of 11,600 m (7.2 miles).
3. Q: What is the advantage of polyester conveyor belt compared to ordinary belts?
A:Polyester conveyor belt is also called EP conveyor belt(NP conveyor belt in the U.S). The “EP” is short for Polyester fabric, which includes polyester toward longitudinal(warp) and polyamide for latitude(weft), EP fabric plies are sandwiched between rubber skim coats for adhesion and load support. Bottom and top cover compounds are added for maximum protection of the belt carcass.
The EP conveyor belt consisting of two to six EP fabric plies, EP rubber conveyor belt has the same merit as Nylon conveyor belt. Its tensile body is made of warp polyester and weft-knitted canvas. Its performance is characterized by low elongation in the warp direction and excellent groove formation in the weft direction. The wet strength does not decrease, no mildew occurs, the initial modulus of the polyester is high, and a lower safety factor can be taken. It is suitable for conveying materials under medium and long-distance and high load and high-speed conditions.
EP rubber conveyor belt is widely used in the mining and processing industries for transporting bulk or lumpy materials such as quarrying, ore, coke, aggregates, crops, sand, clinker, chemicals, construction materials, etc. EP fabric has the advantages of:
A.Lower longitudinal elongation.
B.Full resistance to mildew, moisture and rotting.
C.Good flexibility and trough ability.
D.Short take-up lengths.
E.Suitable for middle and long-distance transportation of higher load and speed.
EP fabric also has excellent compatibility with other rubbers, so it can be combined with any type of cover grade to make it a perfect match for almost any application. This allows EP conveyor belt to convey basically any type of product in any environment, from fine powders to large lumps, from dry to greasy materials, from extremely cold to very hot conditions.
